-25℃ Biomedical Freezer NBD-25L518

-25℃ Biomedical Freezer NBD-25L518

NBD-25L518 Biomedical Freezer Introduction Safer Storage Superior Temp. uniformity& Precise control:Microcom
Product Details

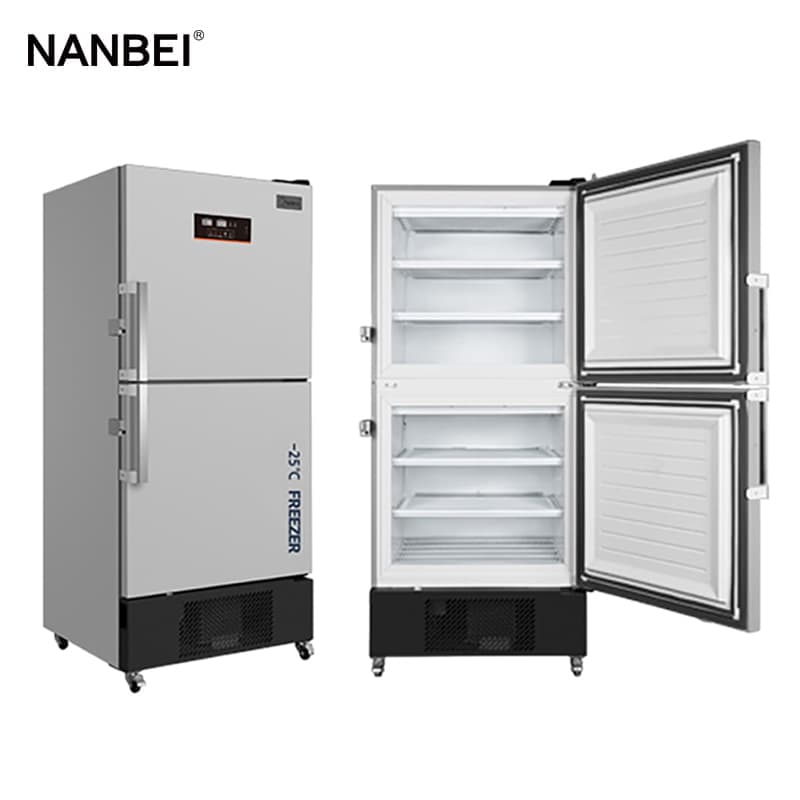

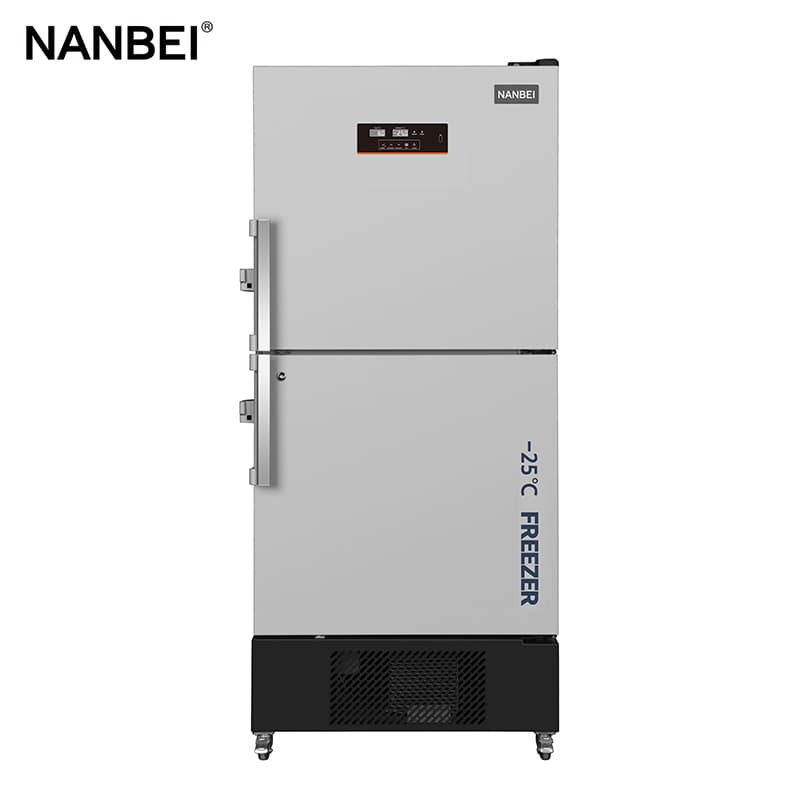

NBD-25L518 Biomedical Freezer


Introduction

Safer Storage

Superior Temp. uniformity& Precise control:

Microcomputer temperature control;

Temperature accuracy 0.1℃;

Temperature uniformity ≤3.5℃;

USB port, temperature and alarm records traceable;

Multi-alarm functions

Humanized Design

Friendly for daily use:

Fixed caster+universal wheel;

Safety lock , Easy open handles;

Anti-condensation door, Cable port;

Wide voltage range design;

Remote alarm contact, Dry contact.


Features

LCD Temperature Control Systems

Button-type control panel is easy to operate, the temperature and alarm settings can be adjust on the panel.

Forming Technology

The fourth generation on foaming agent More uniform density, Better insulation, more energy-saving. More reasonable foaming layer design, larger interior storage space

Micro-channel condenser

Powerful heat dissipation for condenser, heat exchange capacity increase by more than 20% than common copper tube fin condenser. Excellent compressor overheating protection, effectively improve the service life of core parts.

Three-dimensional seal

The unique three-dimensional seal, through the double-layer door seal and the multi-layer airbag sealing design, can effectively reduce the leakage of cold air and achieve best thermal insulation performance.




Specification

NBD-25L518

Storage Volume(L)

518

Climate Class

N

Temperature Range(°C)

-25°C~-10°C

Cooling Type

Direct cooling

Defrost Mode

Manual

Voltage/Frequency(V/Hz)

220~240V/50Hz

Cabinet Type

Upright

Door Type

Solid door

Refrigerant

R290

External dimension (W*D*H mm)

866*811*1920

Internal dimension (W*D*H mm)

680*620*650

680*620*650


Model selection

Item

Model No.

NBD-25L308

NBD-25L518



















Product

structure data

Temperature Range

-10~-25 ℃

-10~-25℃

Fridge Storage Volume(L)

308L

518L

External Material

High quality coated steel

High quality coated steel

Internal Material

High quality coated steel

High quality coated steel

Product Dimensions

(mm)(wxdxh)

700*690*1920

866*811*1920

Interior Dimensions

(mm)(wxdxh)

540*450*1277

680*620*650

680*620*650

Packing Dimensions

(mm)(wxdxh)

755*715*2000

905*835*2040

Loading Dimensions

(mm)(wxdxh)

755*715*2035

905*835*2040

Net/Gross Weight

100/112

142/164

Load capacity (40HQ)

24/48

14/28

Thickness of Foaming layer(mm)

75

75

Foaming agent

Cyclopantane

Cyclopantane

Packing

Carton

Carton

Stacking layers

1

1











Technical data

Cooling Type

Direct cooling

Direct cooling

Defrost type

Manual

Manual

Climate Class

N

N

Rated Voltage/Frequency(V/Hz)

220/50Hz

220~240V/50Hz

Rated Power(W)

210

450

Rated Current(A)

1.18

3.8

Refrigerant/Amount(g)

R290,110g

R290,70g*2

Controller

Microprocessor

Microprocessor



Control

Display

LCD display

LED display

Temperature Accuracy

0.1 ℃

0.1 ℃

Product Performance

Temperature uniformity/°C

≤3.5℃

3℃

Sound Alarm

Y

Y











Alarms

Light Alarm

Y

Y

Power Failure Alarm

Y

Y

Sensor Failure Alarm

Y

Y

Environment Temperature Alarm

Y

Y

Door ajar Alarm

Y

Y

High Temperature Alarm

Y

Y

Low Temperature Alarm

Y

Y

Remote Alarm

Y

Y

USB

Y

Y













Accessories

Anti-condensation Door

Y

Y

Lock

Y

Y

Backup Battery

Y

24h

Handle

Grip

Grip

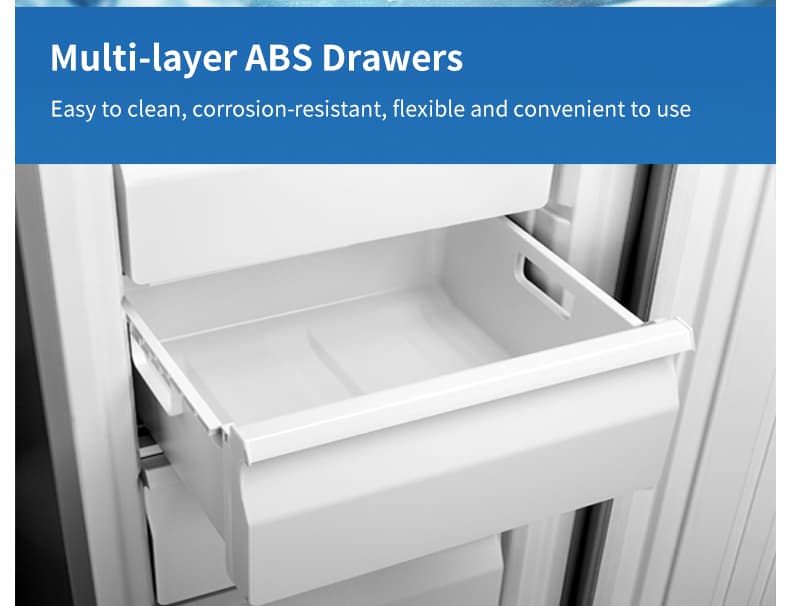

Shelves/Drawers Qty

7 drawers

12 drawers

Cable Port

Y

Y

Castors/type

Y

Y
